System Study 01 / Hydropower & Energy Storage

From reservoir to electricity

The engineering challenge: roughly 70 percent of Norway’s inflow arrives during brief late-spring snowmelt and autumn rains, while peak electricity demand happens during dark, sub-zero January weeks when mountain rivers freeze solid.

NEXT: CROSSINGS
The Operating Architecture

High-mountain storage and underground rock caverns

To bridge the six-month mismatch between spring meltwater and winter heating demand, Norwegian civil engineers spent the twentieth century turning natural high-mountain lakes into interconnected multi-year storage basins. Instead of building massive concrete gravity dams in populated valleys, engineers constructed rockfill dams with central moraine clay cores across barren mountain plateaus at elevations between 700 and 1,300 meters above sea level.

Across more than 1,700 hydropower plants, Norway generates approximately 136 to 140 terawatt-hours (TWh) in a normal hydrological year—representing around 88 to 90 percent of all domestic electricity generation. More importantly, the reservoir network governed by the Norwegian Water Resources and Energy Directorate (NVE) and operated largely by Statkraft and regional utilities holds an energy storage capacity of roughly 87 TWh. That represents nearly half of Europe’s total reservoir hydro storage capacity.

Rather than running exposed steel penstocks down vulnerable mountain slopes—as pioneered in early industrial plants like Vemork at Rjukan in 1911 for Norsk Hydro’s fertilizer production—post-1950 plants moved almost entirely underground. Taking advantage of high geotectonic rock stress in Precambrian gneiss, engineers pioneered unlined high-pressure headrace shafts and underground machine halls. The surrounding mountain rock itself absorbs the internal water pressure, cutting steel usage by up to 80 percent and protecting equipment from avalanches and rockfalls.

Oversized System Diagram: Plateau-to-Fjord Hydraulic Chain

BLÅSJØ RESERVOIR (1,055 m) Air Cushion Surge Chamber CAVERN (4x310 MW) Fjord Tailrace (0 m)

Landmark Case Studies

  • 01
    Ulla-Førre Complex & Kvilldal Power Station (Rogaland) Constructed between 1974 and 1988, Ulla-Førre links dozens of catchment streams across a 2,000-square-kilometer mountain area via 125 kilometers of water tunnels into Blåsjø (holding 3.1 billion m³ behind the Oddatjørn and Førrevass dams). At the heart of the complex sits Kvilldal, Norway’s largest single power station by installed capacity (1,240 MW across four Francis turbines), cushioned against water hammer by an underground compressed-air surge chamber rather than an open surface shaft.
  • 02

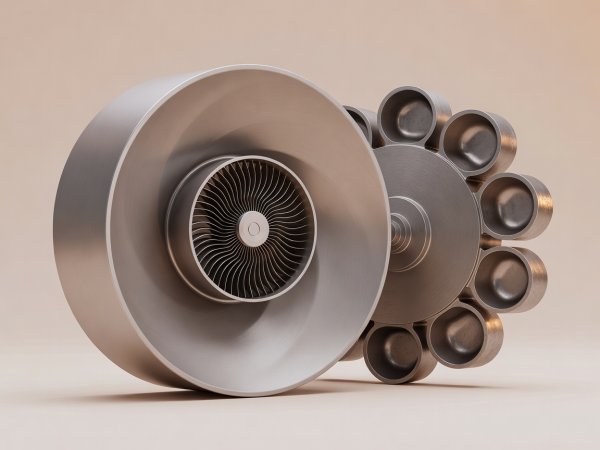

    Sima Power Plant (Eidfjord, Vestland) Carved 700 meters inside the mountain rock at the head of Eidfjorden, Sima operates two separate waterways: Sy-Sima (620 MW, 905 m head) and Lang-Sima (500 MW, 1,152 m head). Because water pressures exceed 100 bar, Sima utilizes high-head vertical-axis Pelton impulse turbines where water jets strike bucket wheels at over 450 km/h.
  • 03
    Tonstad Power Station (Sirdal, Agder) While Kvilldal holds the peak megawatt title, Tonstad (960 MW) consistently ranks as Norway’s largest annual electricity producer, generating roughly 3.6 to 4.0 TWh per year due to abundant coastal precipitation feeding the Sira and Kvina river basins.
Comparative Technical Data

Major Norwegian Hydroelectric Installations & Interconnectors

Installation / System Region / Corridor Capacity Hydraulic Head / Spec Primary Constraint Addressed
Kvilldal (Ulla-Førre) Suldal, Rogaland 1,240 MW 538 m (4 × Francis) Multi-year seasonal storage in 7.8 TWh Blåsjø reservoir
Sima (Sy-Sima & Lang-Sima) Eidfjord, Vestland 1,120 MW 905 m & 1,152 m (4 × Pelton) Harnessing steep glacier-fed plateau drop into Hardangerfjord
Tonstad (Sira-Kvina) Sirdal, Agder 960 MW 442 m (5 × Francis) High annual rainfall capture (~3.8 TWh/yr output)
Aurland I Aurland, Vestland 840 MW 870 m (3 × Pelton) Deep underground cavern preserving scenic valley floor
North Sea Link & NordLink Kvilldal–UK / Tonstad–DE 1,400 MW each 720 km / 623 km HVDC Sub-Sea Balancing intermittent North Sea wind with hydro storage

Operational Trade-offs: River Ecology, Price Zones, and Grid Bottlenecks

Moving entire river catchments through mountain rock tunnels alters natural hydrology. Bypassed river stretches experience sharply reduced summer flows, while downstream fjords receive larger volumes of relatively warm bottom-reservoir freshwater during winter—changing fjord ice formation and coastal currents. Under the Water Resources Act and periodic license revisions (vilkårsrevisjon), NVE mandates minimum environmental flows (minstevannføring), salmon ladders, and bypass valves to protect Atlantic salmon (villaks) and sea trout spawning beds.

On the transmission side, Statnett divides Norway into five electricity bidding zones (NO1 through NO5) because mountain ranges and environmental sensitivities restrict 420 kV overhead transmission lines between Northern Norway (NO4) and Southern Norway (NO2). When dry years coincide with high European gas and power prices across HVDC subsea interconnectors like NordLink (to Germany) and North Sea Link (to the UK), southern reservoirs face strict filling vigilance to preserve winter energy security.
